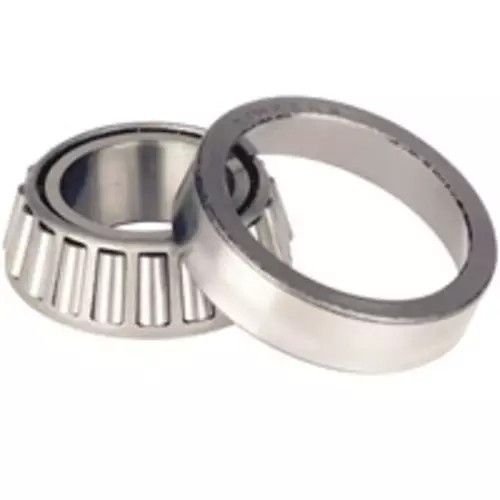

TIMKEN 32208 Rulman
0 Değerlendirme
SKU 153.01.00005076
Stok 0
Ürün Açıklaması
Attributes
picture |  |
Bore Diameter (mm) | 40 |
Bore Diameter (inch) | 1.5748 |
Width T (inch) | 0.9744 |
Width T (mm) | 24.75 |
Inner Ring Width B (inch) | 0.9055 |
Inner ring width B (mm) | 23 |
Outer ring width C (inch) | 0.748 |
Outer ring width C (mm) | 19 |
Max Shaft Fillet Radius R (mm) | 1.5 |
Max Shaft Fillet Radius R (inch) | 0.06 |
Max Housing Fillet Radius r (mm) | 1.5 |
Max Housing Fillet Radius r (inch) | 0.06 |
Dynamic Load Rating C1 (lbs) | 19900 |
Dynamic Load Rating C1 (N) | 88300 |
Outside Diameter (mm) | 80 |
Static Load Rating Co (lbs) | 22000 |
Outside Diameter (inch) | 3.1496 |
Factor K | 1.56 |
Static Load Rating Co (N) | 98000 |
Factor e | 0.37 |
Factor Y | 1.6 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
