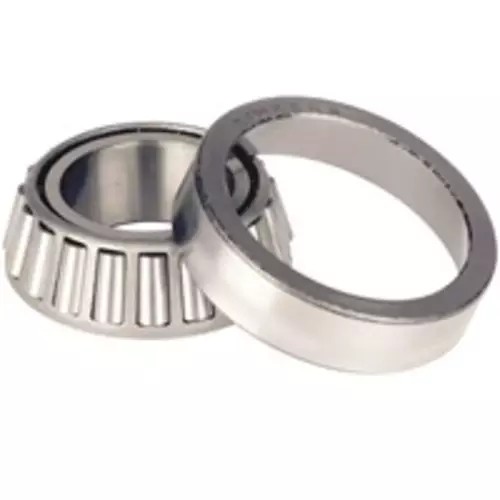

TIMKEN 32205 B Rulman
0 Değerlendirme
SKU 153.01.00015396
Stok 17
Ürün Açıklaması
DİKKAT! NORMAL 32205 İLE FARKLI RADIUS DEĞERLERİ OLABİLİR. LÜTFEN AŞAĞIDAKİ ÖLÇÜLERİ KONTROL EDİNİZ
Attributes
Attributes
picture |  |
Bore Diameter (mm) | 25 |
Bore Diameter (inch) | 0.9843 |
Width T (inch) | 0.7579 |
Width T (mm) | 19.25 |
Inner Ring Width B (inch) | 0.7087 |
Inner ring width B (mm) | 18 |
Outer ring width C (inch) | 0.5906 |
Outer ring width C (mm) | 15 |
Max Shaft Fillet Radius R (mm) | 1 |
Max Shaft Fillet Radius R (inch) | 0.04 |
Max Housing Fillet Radius r (mm) | 1 |
Max Housing Fillet Radius r (inch) | 0.04 |
Dynamic Load Rating C1 (lbs) | 8920 |
Dynamic Load Rating C1 (N) | 39700 |
Outside Diameter (mm) | 52 |
Static Load Rating Co (lbs) | 10400 |
Outside Diameter (inch) | 2.0472 |
Factor K | 1 |
Static Load Rating Co (N) | 46300 |
Factor e | 0.58 |
Factor Y | 1.03 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
