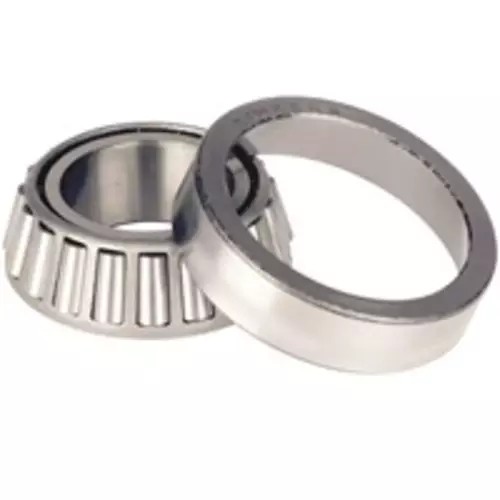

TIMKEN 32040 Rulman
0 Değerlendirme
SKU 153.01.00027691
Stok 0
Ürün Açıklaması
Attributes
picture |  |
Bore Diameter (mm) | 200 |
Bore Diameter (inch) | 7.874 |
Width T (inch) | 2.7559 |
Width T (mm) | 70 |
Inner Ring Width B (inch) | 2.7559 |
Inner ring width B (mm) | 70 |
Outer ring width C (inch) | 2.0866 |
Outer ring width C (mm) | 53 |
Max Shaft Fillet Radius R (mm) | 3 |
Max Shaft Fillet Radius R (inch) | 0.12 |
Max Housing Fillet Radius r (mm) | 2.5 |
Max Housing Fillet Radius r (inch) | 0.1 |
Dynamic Load Rating C1 (lbs) | 191000 |
Dynamic Load Rating C1 (N) | 847000 |
Outside Diameter (mm) | 310 |
Static Load Rating Co (lbs) | 342000 |
Outside Diameter (inch) | 12.2047 |
Factor K | 1.36 |
Static Load Rating Co (N) | 1520000 |
Factor e | 0.43 |
Factor Y | 1.39 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
