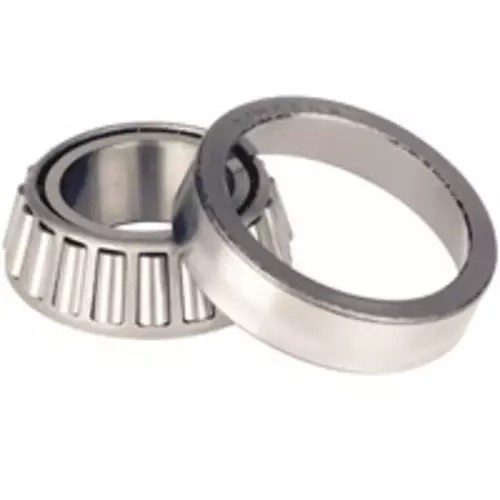

TIMKEN 31309 Rulman
0 Değerlendirme
SKU 153.01.00009776
Stok 0
Ürün Açıklaması
Attributes
picture |  |
Bore Diameter (mm) | 45 |
Bore Diameter (inch) | 1.7717 |
Width T (inch) | 1.0728 |
Width T (mm) | 27.25 |
Inner Ring Width B (inch) | 0.9843 |
Inner ring width B (mm) | 25 |
Outer ring width C (inch) | 0.7087 |
Outer ring width C (mm) | 18 |
Max Shaft Fillet Radius R (mm) | 2 |
Max Shaft Fillet Radius R (inch) | 0.08 |
Max Housing Fillet Radius r (mm) | 1.5 |
Max Housing Fillet Radius r (inch) | 0.06 |
Dynamic Load Rating C1 (lbs) | 23800 |
Dynamic Load Rating C1 (N) | 106000 |
Outside Diameter (mm) | 100 |
Static Load Rating Co (lbs) | 25400 |
Outside Diameter (inch) | 3.937 |
Factor K | 0.71 |
Static Load Rating Co (N) | 113000 |
Factor e | 0.83 |
Factor Y | 0.73 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
