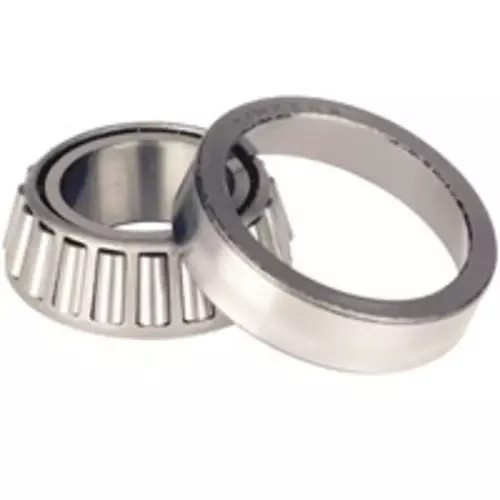

TIMKEN 30314 Rulman
0 Değerlendirme
SKU 153.01.00013521
Stok 0
Ürün Açıklaması
Attributes
picture |  |
Brand | Timken |
Commodity Code | 8482.20.0000 |
Bore Diameter (inch) | 70.000 |
Bore Diameter (mm) | 70 |
Width T (inch) | 1.4961 |
Width T (mm) | 38 |
Inner Ring Width B (inch) | 1.378 |
Inner ring width B (mm) | 35 |
Outer ring width C (mm) | 30 |
Outer ring width C (inch) | 1.1811 |
Max Shaft Fillet Radius R (mm) | 3 |
Max Shaft Fillet Radius R (inch) | 0.12 |
Max Housing Fillet Radius r (inch) | 0.1 |
Max Housing Fillet Radius r (mm) | 2.5 |
Material Pricing Group | TRB - ISO Pop (08) |
Dynamic Load Rating C1 (lbs) | 56500 |
Dynamic Load Rating C1 (N) | 251000 |
Outside Diameter (mm) | 150 |
Static Load Rating Co (lbs) | 62000 |
Outside Diameter (inch) | 5.9055 |
Factor K | 1.69 |
Length | 150.000 |
Static Load Rating Co (N) | 276000 |
Factor e | 0.35 |
Factor Y | 1.74 |
Width (inch) | 38.000 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
