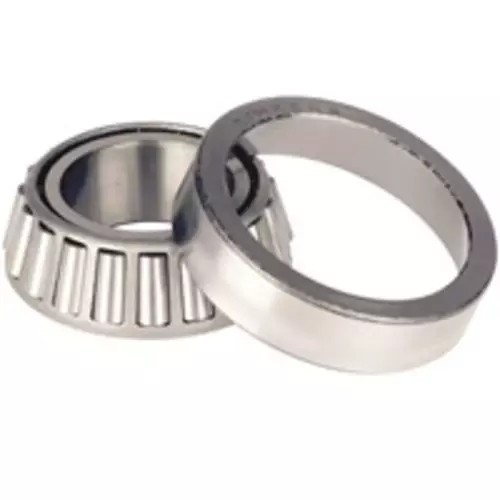

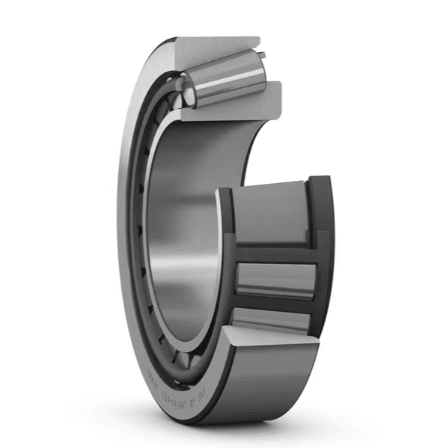

TIMKEN 30308 Rulman
0 Değerlendirme
SKU 153.01.00000954
Stok 11
Ürün Açıklaması
Attributes
picture |  |
Bore Diameter (mm) | 40 |
Bore Diameter (inch) | 1.5748 |
Width T (inch) | 0.9941 |
Width T (mm) | 25.25 |
Inner Ring Width B (inch) | 0.9055 |
Inner ring width B (mm) | 23 |
Outer ring width C (inch) | 0.7874 |
Outer ring width C (mm) | 20 |
Max Shaft Fillet Radius R (mm) | 2 |
Max Shaft Fillet Radius R (inch) | 0.08 |
Max Housing Fillet Radius r (mm) | 1.5 |
Max Housing Fillet Radius r (inch) | 0.06 |
Dynamic Load Rating C1 (lbs) | 23200 |
Dynamic Load Rating C1 (N) | 103000 |
Outside Diameter (mm) | 90 |
Static Load Rating Co (lbs) | 24600 |
Outside Diameter (inch) | 3.5433 |
Factor K | 1.69 |
Static Load Rating Co (N) | 109000 |
Factor e | 0.35 |
Factor Y | 1.74 |
Precision Level | Class K (Standard) Tolerance |
Unit System | Metric |
Special Features | ISO 355 |
